Robot Operating System 2 - Introduction, basic concepts and workspace structure

1. Activity Identity

2. Learning Objectives and Competences

3. Prerequisites

• A Linux workstation with Docker installed and the current user either in the docker group or with sudo rights to run Docker.

• Network access (the lab pulls a Docker image of about 4 GB and clones a GitHub repository).

• Ability to capture evidence: screenshots, logs or observation tables.

4. Required Material and Setup

5. Safety, Ethics and Accessibility Notes

This lab has no physical robot, so the risks are operational only:

• The start_container.sh script in Step 1 runs the container with --network=host, --pid=host, --ipc=host and --gpus all, and grants X-server access with xhost +local:root. These flags reduce isolation in exchange for hardware-accelerated GUIs and easy network/IPC sharing between host and container. Use them only with the FOSSBotEduSim image you build yourself; do not reuse the script for arbitrary Docker images.

• Gazebo and RViz2 are GPU-heavy. On a workstation with integrated graphics, close other GPU applications (browsers with many tabs, video players) before launching the simulator, otherwise the window may freeze.

• After the lab, revoke the X-server access that start_container.sh opened by running xhost -local:root on the host, especially on shared machines.

6. Scenario and Problem Statement

The Robot Operating System 2 (ROS 2) is the de-facto framework for modern robotics. Almost every robot you will work with in later labs (and most research robots in industry) exposes its sensors and actuators as ROS 2 topics, services or actions.

Before you can write code that controls a robot, you need a clear understanding of what a node is, what a topic is, how packages live inside a workspace, and how a launch file starts a whole system at once.

7. Lab Workflow

8. Step-by-Step Instructions

Before you start. Capture evidence as you go. The full list of artifacts you will hand in is in Section 10. Relevant tasks below are marked with a Capture for submission note.

Step 1 - Environment preparation

You will run ROS 2 inside a Docker container built from the Dockerfile shipped with the FOSSBotEduSim repository. That image derives from the official osrf/ros:jazzy-desktop-full release of ROS 2 Jazzy Jalisco and adds every package the lab needs (Gazebo bridge, teleop, slam-toolbox, navigation2, joint-state-publisher, and so on). The image also pre-builds the FOSSBot workspace with colcon during image build, so by the time you have a shell inside the container, everything is already compiled and sourced for you.

1. Clone the FOSSBotEduSim repository onto your workstation (not inside any container):

git clone https://github.com/LRMPUT/FOSSBotEduSim.git
cd FOSSBotEduSim

2. Build the Docker image. This wraps docker build -t ros2_fossbot_edu . and reads the Dockerfile in the current directory:

bash build_image.sh

Tip: The first build downloads about 4 GB of base image plus another ~2 GB of ROS 2 packages, and runs colcon build at the end. Expect 15 to 25 minutes on a fresh workstation. Rebuilds are fast because Docker caches each layer.

3. Start the container. The start_container.sh script handles X-server access (xhost +local:root), display and XAUTHORITY passthrough, GPU passthrough, and host networking, and drops you straight into a shell with both ROS 2 and the FOSSBot workspace already sourced through ~/.bashrc:

bash start_container.sh

Warning: If your workstation has no NVIDIA GPU (or the nvidia-container-toolkit is not installed), the script will fail at the --gpus all flag. Use the companion script bash start_container_no_gpus.sh instead; it is the same script with the GPU passthrough lines removed.

4. Verify the installation from inside the container:

ros2 topic list

Tip: To open a second terminal attached to the same running container (you will need several of them later), run from a new host terminal:

docker exec -it ros2_fossbot_edu bash

Every shell opened this way already has both /opt/ros/jazzy/setup.bash and the FOSSBot workspace’s install/setup.bash sourced from ~/.bashrc. No manual source is needed.

Tip: start_container.sh runs the container with --rm, which means the container is destroyed the moment you exit the shell. To resume work, just run bash start_container.sh again. The workspace at ws_fossbot/ on the host is bind-mounted into the container, so any build artifacts or files inside it survive across sessions.

Expected result: The shell prompt is now inside the container (it usually starts with root@...:/fossbot_ros2/ws_fossbot#). ros2 topic list prints two topics, /parameter_events and /rosout, which ROS 2 always creates.

Step 2 - Basic ROS 2 concepts

This section is reference material. Skim it now, then come back to it in Step 4 when you start to see these concepts on a real running system.

What is ROS 2

ROS 2 is a set of libraries, tools and conventions for building robot software. It is not an operating system; it runs on top of Linux. Its main job is to let many small programs (called nodes) on one machine or across several machines exchange typed messages without each one having to implement its own networking code.

ROS 1 (released in 2007) was the first version and is still in use, but it was designed for research labs, not industrial deployment. ROS 2 (first stable release in 2017) was rewritten on top of the DDS standard to add real-time guarantees, security and proper multi-machine support. The version you are using in this lab is Jazzy Jalisco, the May 2024 release, which is the current long-term-support distribution.

Workspace

A ROS 2 workspace is a directory in which you build packages. A typical workspace looks like this:

ros2_ws
├── build    # compilation artifacts; only changed files are rebuilt
├── install  # the built and installed version of your packages
├── log      # logs of past builds; safe to delete to recover disk space
└── src      # source code of every package in the workspace

Source code lives in src/. The other three directories are produced by the build tool, colcon. To rebuild everything in the current workspace, you run colcon build from the workspace root. To rebuild just one package, you run colcon build --packages-select <package_name>.

After a build, you have to tell your shell where to find the freshly built packages by sourcing the install file:

source install/setup.bash

Every time you open a new shell, you have to source the workspace again (after sourcing /opt/ros/jazzy/setup.bash). Forgetting this is the most common reason a ros2 run command says it cannot find your package. The FOSSBotEduSim container does both source lines automatically from ~/.bashrc, so you do not need to type them in this lab.

Package

A package is the unit of code organisation in ROS 2. It is a directory that holds the source for one or more nodes plus a package.xml file declaring the package’s name, version and dependencies. A workspace’s src/ directory contains one subdirectory per package. The FOSSBotEduSim repository you will inspect in Step 3 contains exactly one package, named fossbot_educational_description.

Node

A node is one running process in the ROS 2 graph. It is started with:

ros2 run <package_name> <executable_name>

To see which nodes are alive right now and what each one is doing:

ros2 node list
ros2 node info /node_name

Topic

A topic is a named, typed channel between nodes. A publisher writes messages on a topic; a subscriber reads them. A topic appears the moment one publisher and/or subscriber refers to it; there is no central registry to set up in advance.

The CLI tools you will use most often are:

ros2 topic list              # all topics the graph currently knows about
ros2 topic list -t           # same, with the message type of each
ros2 topic info <topic>      # publishers, subscribers and type
ros2 topic echo <topic>      # print messages as they arrive
ros2 topic hz <topic>        # measure the publish rate

In this lab you will only ever subscribe to topics from the CLI (with ros2 topic echo); you will not publish from the terminal. The robot is driven by a separate program, teleop_twist_keyboard, in Step 6.

Message

A message is a typed data structure shared between publisher and subscriber. ROS 2 ships with hundreds of standard message types (std_msgs, geometry_msgs, sensor_msgs, …). You inspect a type’s fields with:

ros2 interface show <message_type>

Two examples that will come up in this lab:

• geometry_msgs/msg/Twist carries a linear and an angular velocity, and is the standard way of telling a mobile robot how to move.
• sensor_msgs/msg/LaserScan carries one sweep of a 2D laser scanner: the angular range, the angular step, and one distance value per beam.

Graph

The graph is the collection of all live nodes and the topics between them. The tool that visualises it is:

rqt_graph

You will run it in Step 5.

Launch files

Real robots are made of many cooperating nodes. Starting each one by hand would be both tedious and error-prone, so most packages ship with one or more launch files that start a whole group of nodes at once. You invoke a launch file by name, without needing to know what is inside it:

ros2 launch <package_name> <launch_file>

You will use the launch file single.launch.py shipped with FOSSBotEduSim in Step 4. Treat it as a black box for this lab.

DDS and ROS_DOMAIN_ID

ROS 2 nodes do not have a central master process; they find each other automatically on the local network using the DDS (Data Distribution Service) standard. This is convenient, but it means that every ROS 2 node on your network is, by default, visible to every other ROS 2 node on the same network.

In a lab with several students, each running their own simulator, that would be chaos: your ros2 topic list would show everyone’s topics, and your teleop publisher would also drive your neighbour’s robot. The fix is the ROS_DOMAIN_ID environment variable, a small integer (0 to 232) that partitions the network into independent groups. Nodes only see other nodes with the same ROS_DOMAIN_ID. The default is 0.

You do not need to set it in this lab (you are running a single container on a single machine, and --net=host only shares the host’s network), but you do need to remember it exists before you put a real robot on a shared Wi-Fi network. See About Domain ID for the full story.

Step 3 - Inspect the FOSSBotEduSim workspace

Move to the workspace root (you may already be there) and list its contents. Then build the workspace:

cd /fossbot_ros2/ws_fossbot
ls
colcon build

You should see four directories: build/, install/, log/ and src/. These are exactly the four directories described in the Workspace concept.

Capture for submission: screenshot the terminal showing all four directories listed in the ws_fossbot directory.

2. Look inside src/ to see the package:

ls src

There is exactly one package: fossbot_educational_description.

Task 3.1

Confirm that the same package is also visible to ROS 2 (the simulator package will be discoverable from anywhere in the container, not just from this directory):

ros2 pkg list | grep fossbot

Take a screenshot of this output.

Expected result: The four workspace directories are present and ros2 pkg list | grep fossbot prints fossbot_educational_description. If nothing is shown, it is likely because the environment isn’t sourced. After running colcon build, always run source install/setup.bash.

Step 4 - Launch the simulator and inspect its topics

You will now start the simulator with a single ros2 launch command. That one command actually starts several cooperating nodes; you will then inspect them from a second terminal.

1. Start the simulator in the current terminal:

ros2 launch fossbot_educational_description single.launch.py world:=simple_shapes.sdf

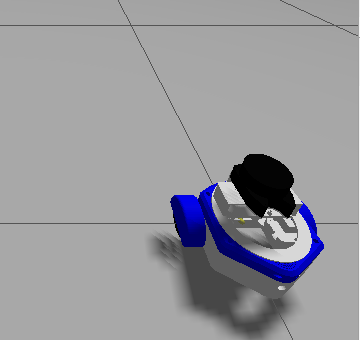

Two windows should open: a Gazebo window with the FOSSBot inside a world full of boxes, and an RViz2 window showing the robot model, the lidar scan and the camera image. Leave both running.

Tip: The first launch is slow because Gazebo needs to download some assets. Subsequent launches are fast.

2. Open a second terminal attached to the same container (run this on the host, not inside the container):

docker exec -it ros2_fossbot_edu bash

The new shell already has both /opt/ros/jazzy/setup.bash and the FOSSBot workspace’s install/setup.bash sourced from ~/.bashrc, so ros2 is ready to use immediately.

Task 4.1

List the nodes that the launch file started:

ros2 node list

You should see at least /robot_state_publisher, /rviz2, and a ros_gz_bridge node that connects ROS 2 to Gazebo. This is what a launch file does: it brings up several cooperating nodes with one command.

Tip: If ros2 node list is empty in this second terminal, the most common cause is a stale ros2 daemon left over from a previous session. Restart it with ros2 daemon stop ; ros2 daemon start and try again.

Task 4.2

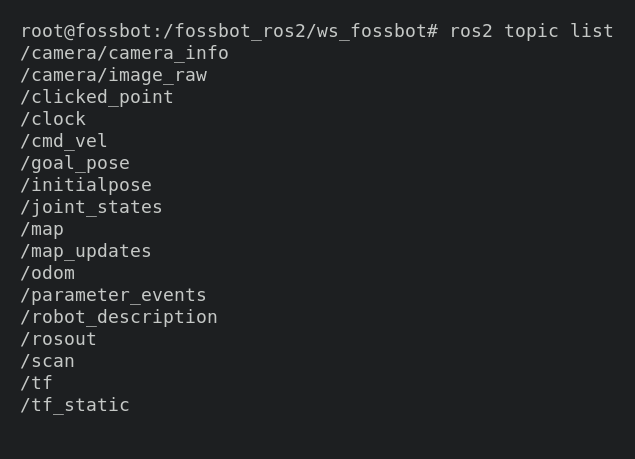

List the topics the running graph exposes:

ros2 topic list

Among them you should find at least:

• /cmd_vel (movement commands going into the simulator),
• /scan (lidar measurements coming out of the simulator),
• /odom (odometry, an estimate of the robot’s position),
• /camera/image_raw and /camera/camera_info (RGB camera output),
• /joint_states (wheel joint angles and velocities),
• /tf (the robot’s coordinate frames),
• /clock (simulation time).

Task 4.3

Get details on the /scan topic, then inspect the structure of its message type:

ros2 topic info /scan
ros2 interface show sensor_msgs/msg/LaserScan

Tip: The fields you see here (angle_min, angle_increment, ranges, range_max) are exactly the ones Lab 07 will read in Python. Knowing the message shape before writing any code is a habit worth forming.

Task 4.4

Stream the actual lidar messages as they arrive, then stop the stream with Ctrl+C:

ros2 topic echo /scan

You will see a long array of distances flying by. The robot is configured to publish at 10 Hz. Confirm the actual rate (it may be lower if Gazebo is CPU-limited):

ros2 topic hz /scan

Expected result: You can name at least three topics the simulator publishes, you know the message type of /scan, and you have seen live data on it.

Capture for submission: screenshot the Gazebo and RViz2 windows side by side, with the FOSSBot visible in both.

Step 5 - Visualize the graph and the sensors

Task 5.1

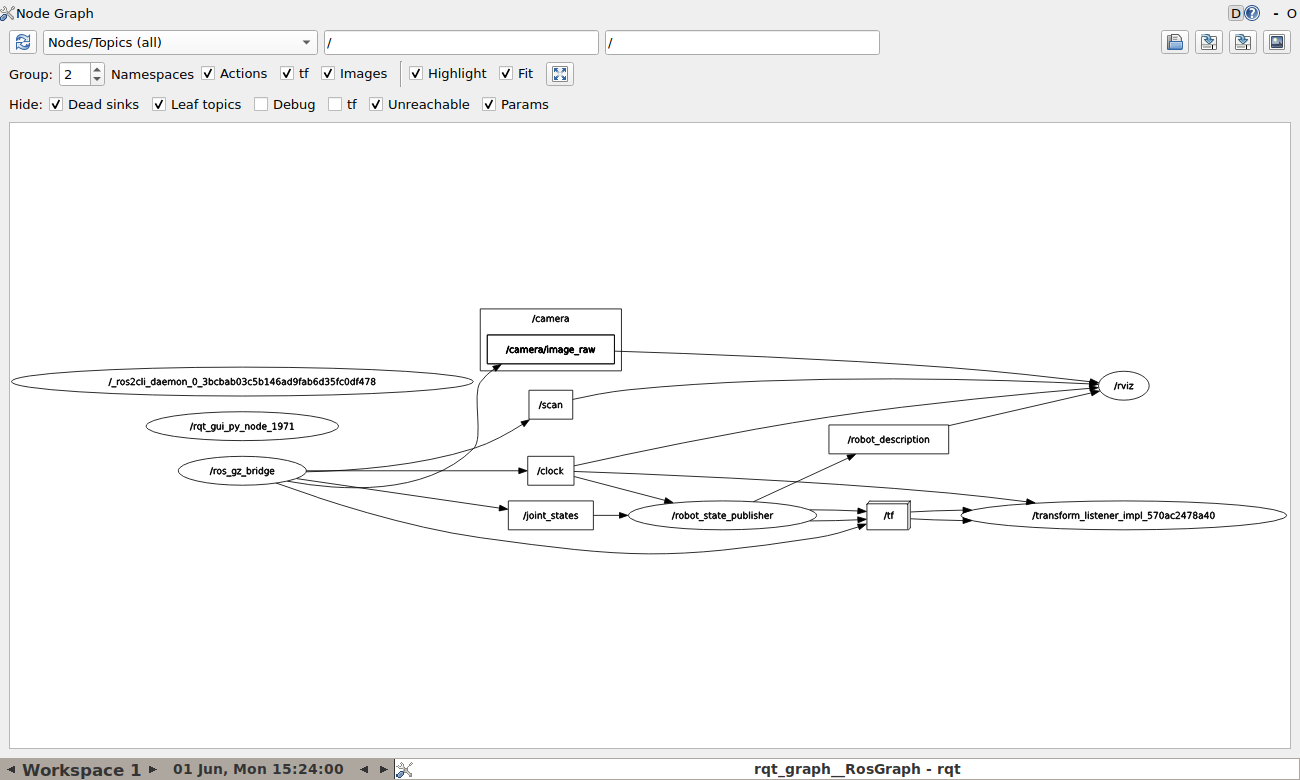

In a new terminal inside the container (docker exec -it ros2_fossbot_edu bash on the host), start the graph visualiser:

rqt_graph

A new window opens. Each box is a node and each arrow is a topic. Find the ros_gz_bridge node and notice how it sits in the middle, converting topics back and forth between Gazebo and the ROS 2 graph.

Tip: If the graph looks empty, change the top-left dropdown from Nodes only to Nodes/Topics (all) and click the refresh icon.

Capture for submission: screenshot the rqt_graph window with the FOSSBot nodes visible.

Task 5.2

Switch to the RViz2 window that single.launch.py already opened. The display configuration that ships with FOSSBotEduSim already includes:

• the robot model (3D mesh),
• the lidar scan (the cloud of red dots around the robot),
• the camera image (a small panel in the bottom-left).

If any of them are missing, click Add in the Displays panel on the left, then By topic, and add the topic you want to visualise.

Expected result: You can match the boxes in rqt_graph to the nodes from ros2 node list, and you can match the visualisations in RViz2 to the topics from ros2 topic list.

Step 6 - Drive the robot and watch the topics

This is the moment where the publisher/subscriber pattern becomes concrete: one process publishes velocity commands, another subscribes to them, and you can watch the resulting motion change a third topic in real time.

By now you should have these terminals open inside ros2_fossbot_edu:

• Terminal A: running single.launch.py from Step 4. Leave it running.
• Terminal B: the inspection terminal from Step 4. Free for use again.
• Terminal C: running rqt_graph from Task 5.1. Leave it running.

Open two more (docker exec -it ros2_fossbot_edu bash on the host; the workspace is already sourced):

• Terminal D for teleop,

• Terminal E for echoing /odom.

1. In Terminal D, start the keyboard teleoperator. It publishes geometry_msgs/msg/Twist messages on /cmd_vel whenever you press a key:

ros2 run teleop_twist_keyboard teleop_twist_keyboard

2. In Terminal E, echo the odometry topic:

ros2 topic echo /odom

Task 6.1

Click into Terminal D so it receives your keystrokes, then drive the robot around the world (the keys are documented on the teleop’s own screen; i moves forward, j/l rotate, k stops). While you drive, watch Terminal E: the position and twist fields of /odom update continuously.

Task 6.2

Drive the robot toward one of the boxes in the world and stop a short distance away. In Terminal B (which is now idle), watch how the lidar reacts:

ros2 topic echo /scan --once

The --once flag prints a single message and exits, which is easier to read than the firehose of continuous output. The minimum value in the ranges array should be small (the box is close) when the robot is near an obstacle, and large (or inf) when it is in open space.

Tip: teleop_twist_keyboard is a publisher on /cmd_vel; the ros_gz_bridge node is a subscriber. The simulator is a publisher on /odom and /scan; your ros2 topic echo commands are subscribers. The same pattern, repeated.

Expected result: As you press keys in the teleop terminal, the robot moves in Gazebo, the position numbers in the /odom terminal change, and the lidar values in the /scan terminal change with the surroundings.

Capture for submission: screenshot a terminal showing /odom (or /cmd_vel) updating while teleop drives the robot. The numbers should clearly be changing between two snapshots.

9. Analysis Questions

1. You ran ros2 interface show sensor_msgs/msg/LaserScan in Task 4.3. Which fields would you need to read to compute the angle (in radians) at which the closest obstacle was seen?

2. In Step 6 you ran ros2 topic echo /odom in Terminal E. If you opened a sixth terminal and ran the same command there at the same time, what would each terminal receive? What does your answer tell you about how many subscribers a single ROS 2 topic can have?

3. The single ros2 launch fossbot_educational_description single.launch.py command from Step 4 produced several entries in ros2 node list. Why is this preferable to opening one terminal per node and starting them by hand?

4. Two students sit next to each other in the lab, each running their own FOSSBotEduSim container on the same Wi-Fi network. Without any extra configuration, what would each of them see in ros2 topic list? Which single environment variable, set to a different value in each container, fixes the problem?

10. Submission Requirements

• A screenshot of the ls output from Step 3 showing build/, install/, log/ and src/ in the ws_fossbot directory.

• A screenshot of Gazebo and RViz2 with the FOSSBot visible, from Step 4.

• A screenshot of rqt_graph from Task 5.1 showing the simulator’s nodes and topics.

• A screenshot of /odom (or /cmd_vel) updating in a terminal while teleop drives the robot, from Task 6.1.

• Short answers (2 to 3 sentences each) to the four analysis questions.
