ROS 2 - publishing data

Setting up the environment

Before you start working with ROS, call the command in each newly opened terminal:

• after the first compilation (there are build, install, log directories):

source install/setup.bash

• before the first compilation:

source /opt/ros/humble/setup.bash

Introduction

In this manual, we will publish data using topics. We will use different robots: turtlesim and simulated robotic arm.

Information about topics in ROS and turtlesim can be found here.

Publishing in the context of turtlesim

Run the simulation:

ros2 run turtlesim turtlesim_node

Test the simulation interactivity by running the turtle_teleop_key node in a separate terminal:

ros2 run turtlesim turtle_teleop_key

View the running nodes and the connections between them using the rqt_graph tool.

We can control our RoboTurtle using topics. Use the appropriate command to get a list of them

ros2 topic list

and display the current pose of the RoboTurtle:

ros2 topic echo /turtle1/pose

Use Ctrl+c to terminate the data subscription.

Wanting to publish data to the /turtle1/cmd_vel topic and move the RoboTurtle, we should first check the topic type:

ros2 topic type /turtle1/cmd_vel

The command returns the type geometry_msgs/msg/Twist. We can check the type with the following command:

ros2 interface show geometry_msgs/msg/Twist

The Twist structure contains two 3D vectors. The first vector defines the linear velocity and the second defines the angular velocity. Our robotic turtle, unlike multi-rotor drones, is a non-holonomic system. This means that the robot can move forward/backward (x axis) and rotate around the z axis. To move the robot, you need to publish data to the /turtle1/cmd_vel topic by setting the appropriate values for linear and angular velocity:

ros2 topic pub /turtle1/cmd_vel geometry_msgs/msg/Twist "linear:
  x: 0.0
  y: 0.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: 0.0"

🐢🐢🐢

You don’t need to remember the type and structure of the message. Use the Tab button and the Linux terminal will help you with the correct names.

🐢🐢🐢

Change the parameter values so that the robot turtle starts moving. Test different variations.

Manipulating the robotic arm

Let’s start by installing the driver for Universal Robots:

apt install ros-${ROS_DISTRO}-ur-robot-driver

After installation, we can start the UR3 robot simulator. This step internally uses Docker software (in case of an error, make sure you have completed docker configuration):

ros2 run ur_robot_driver start_ursim.sh -m ur3

After starting the simulator, we can run the robot driver in a new terminal window:

ros2 launch ur_robot_driver ur_control.launch.py ur_type:=ur3 robot_ip:=192.168.56.101 launch_rviz:=true

🐢🐢🐢

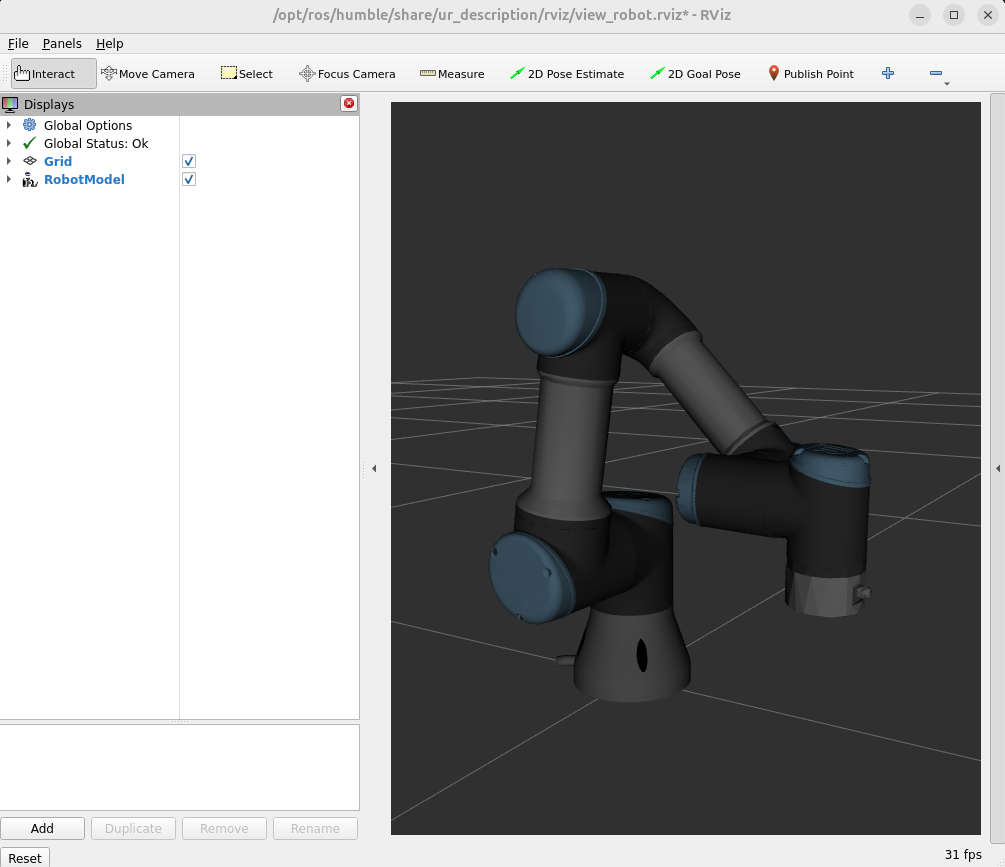

If the rviz program shows a sad, curled up in a ball and textureless robotic arm try aborting the above script and running it again. After restarting, wait a few seconds. If restarting several times doesn’t help, open the robot panel in your browser (the link displays the command that starts the simulator) and try to move the robot with the buttons in the panel. Restart the controller with the visualization (potentially several times).

🐢🐢🐢

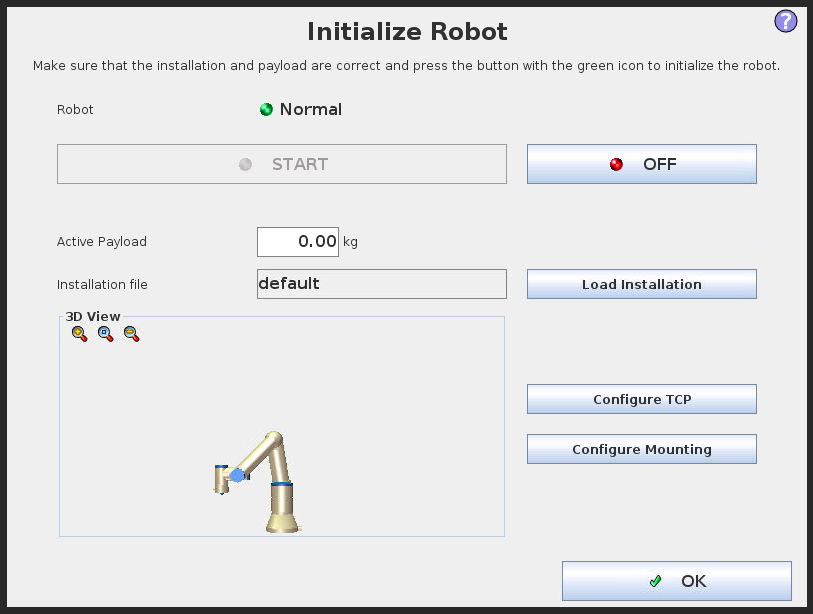

The browser-launched robot panel (PolyScope) is a graphical user interface (GUI) for controlling the robot arm, executing robot programs and easily creating new ones. A properly run simulation should allow you to control the robot in PolyScope and observe its movements in RViz.

Tasks

1. Read the frequency of the UR3 robot control loop. To do this, display the frequency for the subject /joint_states.
2. Move the arm in the UR3 panel. Verify that rviz correctly renders the robot’s pose.
3. In the terminal, check what topics and what types the UR3 controller has created.
4. Set the arm to the Home position using the UR3 panel.
5. Try to run the sample trajectory using the command: ros2 launch ur_robot_driver test_scaled_joint_trajectory_controller.launch.py. Does the robot move?
6. Use the UR3 panel to create a new, empty program. Add the External Control command to it (from Structure -> URCaps). Run the program and the example trajectory from the previous task. Does the robot move in the panel and rviz?
7. Test the above on another UR robot, for example ur3e.
